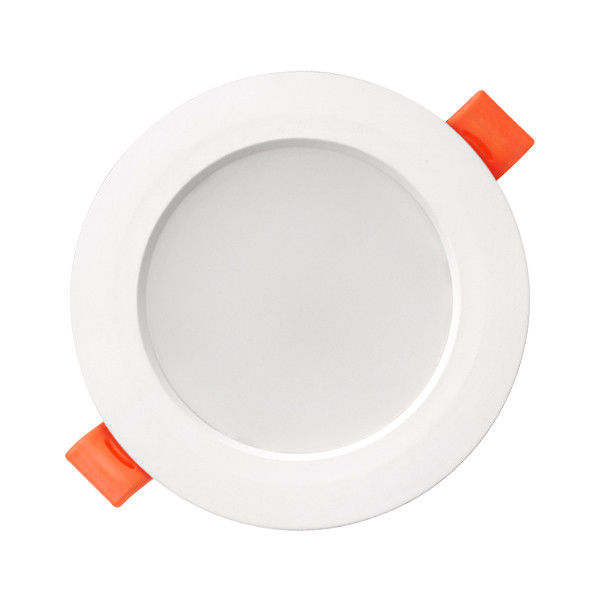

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB

  • High Light

    Backlit Slim Round Panel Light

    ,

    Slim Round Panel Light 7W

    ,

    Ultra Thin Flat Panel LED Lights

  • Certification
    ETL / ES / CEC JA8 Title 24 / FCC / ICES- 005
  • Product Type
    Backlit LED Slim Panel Light
  • Power
    7w
  • Input Voltage(v)
    AC120V 60Hz
  • Lamp Body Material
    Plastic + Metal
  • Warranty(years)
    3 Years
  • CRI
    90
  • Lamp Luminous Flux(lm)
    >420lm
  • Application
    Living Room / Bedroom / Sitting Room / Reading Room
  • Color Temperature
    5cct
  • Beam Angle
    110°
  • Color
    White Painted
  • Place of Origin
    CHINA / VIETNAM
  • Brand Name
    SONLITE
  • Model Number
    SL-SPL-R30P7-5C-ECO
  • Minimum Order Quantity
    3000PCS
  • Price
    Negotiable
  • Packaging Details
    Neutral White Box / Custom Color Box
  • Delivery Time
    30 - 45 Work Day
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    200,000PCS / MONTH

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB

3'' Plastic Backlit Dimmable LED Slim Panel light 7W 5CCT Selectable, CRI 90 Title 24 / FCC



About This Backlit Dimmbale LED Slim Panel Light



  • 5CCT : 2700K, 3000K, 3500K, 4000K, 5000K. 5 Color Temperature Selectable, No Need to Worry about what color temperature to buy,Because there is always One For You!



  • High Brightness&Smooth Dimming : The 3'' Super Slim Downlights use the new generation of LED chips with Higher Lumens, Customize your brightness from 10%-100% with 420lm. Compatibled with various dimming switches. Dim Without Flickering, Flashing or Humming Noise.



  • Slim-canless Design : Built with an easy to handle and light design that only needs 2 inches of clearance space to fit into narrow ceilings. Each low profile LED ceiling light is the perfect solution that comes with a junction box for easy wiring, spring loaded clips and modern trim for a flush to ceiling finish, and does not require any can housing.



  • IC Rated : Sonlite canless led downlight conforms to IC Rated and ETL's high standards, no danger of direct contact and insulations contact in ceiling , meaning the junction Box is thermally protected and insulations, Never Worry about causing a fire. And Recessed Lighting is certified by ETL of a high standard.



  • Easy Install & Space-saving Design : Connect the Jbox to the cable, Use spring clip to fix it on the ceiling, the installation can be completed in minutes. The JBOX requires only as little as 2 inches of ceiling space.



Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 0

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 1





5 CCT Selectable & 10%-100% Dimmable



This LED recessed light gives you 5 color temperatures to choose from: 2700K, 3000K, 3500K, 4000K, and 5000K. Matching most TRIAC dimmers on the market, this light smoothly dims from 10% to 100%



Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 2

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 3





FEATURES

  • 10%-100% Dimmable: Adjust the brightness of the lights to create the perfect ambiance for any occasion.
  • Can Killer Downlight & Super Easy Installation: Connect the Jbox to the cable, Use spring clip to fix it on the ceiling, the installation can be completed in minutes, without the need for any special tools or skills.The JBOX requires only as little as 2 inches of ceiling space.
  • Spectacular Lighting: The high CRI90+ displays the vivid natural color of your interior space and is better for your eyes.
  • Trustworthy & Safety: ETL-listed safety standards, the downlights guarantees corrosion protection and rust prevention with airtight structure. It’s a perfect fit for your roof and ceiling.
  • IC Rated: Designed to be installed in the ceiling surrounded by insulation. Our retrofits won’t overheated and cause a fire in the roof or overhead moist space.
  • Wet RatedThis light is wet location rated and it can be used in most scenes thanks to the simple and traditional appearance.



SPECIFICATION



Item No. SL-SPL-R30P7-5C-ECO
Type LED Slim Panel light
Wattage 7W
Luminous Flux 420lm
CRI > 90
Colour Temperature ‎2700K/3000K/3500K/4000K/5000K
Driver Input AC120V
Size φ105×32mm
Power Factor >0.9
Dimming 10 - 100% ( 0 - 10V or Triac )
Location Insulated Ceiling & Wet Locations
Finish White
Beam Angle 110°
THD <20%
Material ‎Plastic
Installation Flush - mount
Lifespan 50000h
J Box Material Iron / Aluminium
Executive Standard ETL / ES / Wet Location / IC Rated / ICES-005
Warranty 3 Year Limited for Fixture



Easy Installation



Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 4



APPLICATIONS

  • Hospitality
  • Retail
  • Kitchens
  • Hotels
  • Museum
  • Indoor / outdoor residential,
  • Offices
  • Commercial
  • Shopping mall stores

Plastic Backlit Flat Slim Round Panel Light 7W 5CCT 3 Inch Ultra Thin COB 5





LISTING / WARRANTY

  • cETLus to US and Canadian standards for wet location.
  • cETLus listed and classified.
  • Energy Star.
  • Meets requirements of ICES-005 issue 5 class B for use in residential applications.
  • IC rated for direct contact with insulation
  • Airtight as per ASTM E283 standard
  • 3 Year Limited Warranty.
